自吸泵主要技術參數
Main technical parameter of self-priming pump
|
性能 Capability |
主要技術參數
Main technical parameter |
|
流量 Flow |
10-20m/h |
|
總揚程 Total distance |
18-20m |
|
其中吸程 |
5-6m |
|
葉輪輪輻直徑 impeller diameter |
Φ189mm |
|
進出口管徑 Entrance & Exit diameter |
Φ51mm |
|
電動機型號Electromtor type |
Y112-4 |
|
功率power |
4KW（380V.50HZ) |
|
轉速Rotanting speed |
1420r/min |
|
外形尺寸（長×寬×高） Size (L×W×H） |
600×350×420 |
|
機器重量Weight |
55kg | |
離心泵主要技術參數
Main technical parameter of centrifugal pump
|
型號Type |
流量（噸/小時）Flow(ton/h) |
揚程（米水柱）Distance (Mwater column) |
電機功率electricpower |
進出口徑entrance&exit diameter |
|
|
TLW-1.5-14 |
1.5 |
14 |
0.5 |
40/25 |
32/25 |
|
TLW-3-14 |
2 |
14 |
1.1 |
40/32 |
38/38 |
|
TLW-5-24 |
5 |
24 |
1.5 |
50/40 |
51/38 |
|
TLW-5-32 |
5 |
32 |
2.2 |
50/40 |
51/38 |
|
TLW-10-24 |
10 |
24 |
2.2 |
50/40 |
51/38 |
|
TLW-10-36 |
10 |
36 |
3 |
50/40 |
51/38 |
|
TLW-15-24 |
15 |
24 |
3 |
50 |
51 |
|
TLW-20-24 |
20 |
24 |
4 |
50 |
51 |
|
TLW-20-36 |
20 |
36 |
5.5 |
50 |
51 |
|
TLW-25-24 |
25 |
24 |
4 |
50/50 |
51/51 |
|
TLW-30-24 |
30 |
24 |
5.5 |
65/50 |
63/51 |
|
TLW-30-36 |
30 |
36 |
7.5 |
65/50 |
63/51 |
|
TLW-30-60 |
30 |
60 |
11 |
65/50 |
63/51 |
|
TLW-35-36 |
35 |
36 |
11 |
65/50 |
76/63 |
|
TLW-40-36 |
40 |
36 |
11 |
80/65 |
76/63 |
|
TLW-40-45 |
40 |
45 |
11 |
80/65 |
101.6/76 |
|
TLW-50-36 |
50 |
36 |
11 |
80/65 |
101.6/76 |
|
TLW-80-30 |
80 |
30 |
15 |
100/85 |
|
|
TLW-80-40 |
80 |
40 |
18.5 |
100/85 |
|
|
TLW-100T-40 |
100 |
40 |
22 |
125/100 |
|
|
TLW-100T-70 |
100 |
70 |
33 |
125/100 |
|

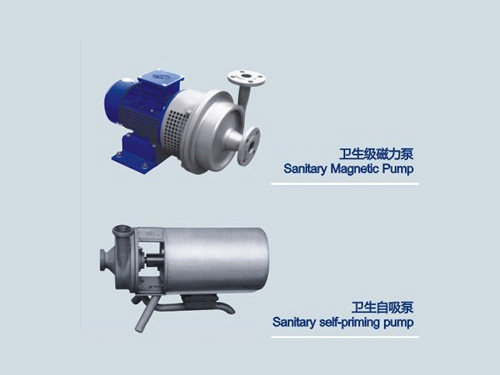

衛生級磁力泵主要技術參數
Main technical parameter of sanitary magnetic pump
|
型號Type |
建議選用流量范圍(t/h) |
功率（KW） |
揚程 |
進口口徑 |
出口
口徑 |
|
TLCLP1-100(B) |
0.5-1.5 |
0.37 |
8-4 |
25 |
25 |
|
TLCLP1-120(B) |
0.5-1.5 |
0.55 |
15-10 |
25 |
25 |
|
TLCLP3-110(B) |
2-4 |
0.55 |
11-7 |
38 |
25 |
|
TLCLP3-120(B) |
2-4 |
0.75 |
15-9 |
38 |
25 |
|
TLCLP3-140(B) |
2-5 |
1.1 |
24-12 |
38 |
25 |
|
TLCLP5-140(B) |
4-8 |
1.1 |
22-12 |
50.8 |
32 |
|
TLCLP5-150(B) |
4-8 |
1.5 |
27-19 |
50.8 |
32 |
|
TLCLP5-165(B) |
4-8 |
2.2 |
33-27 |
50.8 |
32 |
|
TLCLP5-180(B) |
4-8 |
3 |
42-35 |
50.8 |
32 |
|
TLCLP10-150(B) |
7-14 |
2.2 |
24-13 |
50.8 |
38 |
|
TLCLP10-165(B) |
7-14 |
3 |
32-23 |
50.8 |
38 |
|
TLCLP10-175(B) |
7-14 |
4 |
37-31 |
50.8 |
38 |
|
TLCLP10-182(B) |
7-14 |
4 |
42-37 |
50.8 |
38 |
|
TLCLP20-165(B) |
16-25 |
4 |
29-21 |
50.8 |
50.8 |
|
TLCLP20-180(B) |
16-25 |
5.5 |
36-28 |
50.8 |
50.8 |
|
TLCLP20-192(B) |
16-25 |
7.5 |
44-36 |
50.8 |
50.8 |
|
TLCLP20-210(B) |
16-25 |
7.5 |
52-46 |
50.8 |
50.8 |
|
TLCLP30-165(B) |
22-40 |
5.5 |
29-18 |
63.5 |
50.8 |
|
TLCLP30-180(B) |
22-40 |
7.5 |
38-28 |
63.5 |
50.8 |
|
TLCLP30-192(B) |
22-40 |
7.5 |
45-36 |
63.5 |
50.8 |
|
TLCLP30-210(B) |
22-40 |
11 |
51-45 |
63.5 |
50.8 |
|
TLCLP50-165(B) |
42-60 |
7.5 |
29-21 |
76 |
63.5 |
|
TLCLP50-180(B) |
42-60 |
11 |
37-29 |
76 |
63.5 |
|
TLCLP50-192(B) |
42-60 |
11 |
43-36 |
76 |
63.5 |
|
TLCLP50-210(B) |
42-60 |
15 |
51-46 |
76 |
63.5 |
|
