工作方式

管程物料通過電拋光處理的無縫鋼管束內進行流動，殼程介質在相反的方向通過 管外流動，換熱管束的末端采用雙管板連接，并且作為滲漏檢測點，避免管程物 料和殼程介質雙向交叉污染，確保了藥液的潔凈。

Working principle

Tube material flow through the seamless steel tube electric polishing processing within the beam.Shell cheng medium flow in the opposite direction through the outer pipe,heat exchange tube bundle bottom USES tube plate tighten,some as a leakagemonitoring stations,prevent Two- way cross contamination bettwen the tube mate rial and Shell cheng medium.To insure the cleaning of the solution.

雙管板換熱器型式

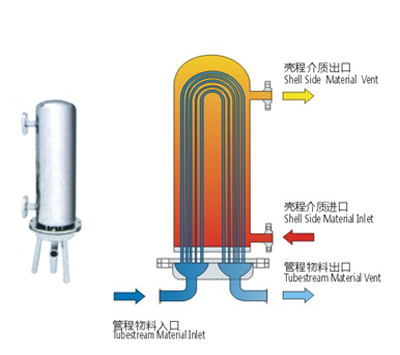

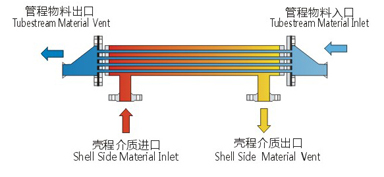

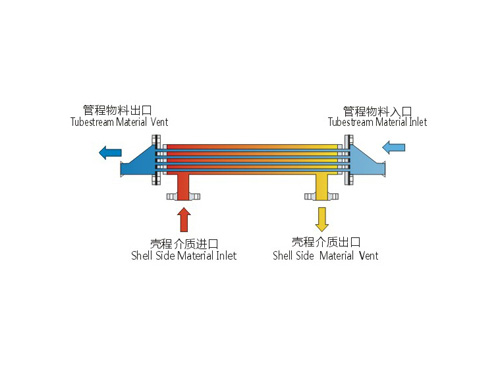

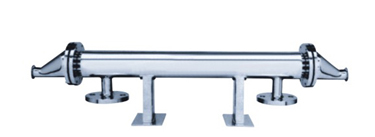

ZZ系列雙管板換熱器有兩種，直管式雙管板換熱器(ZZA型)和U型雙管板換熱器 (ZZB型)，管束端口采用全自動焊接，外殼體可根據客戶的要求帶保溫或不帶保 溫。直管式雙管板換熱器采用異徑快裝接口，有效避免了換熱器與管道連接處的 藥液滯留，實現了真正的全排空設計。U型雙管板換熱器采用U型換熱器，物料從 底殼最低點出液，避免液體滯留。

The type of double tube heat exchanger

In generally have two Types.Fixed tube heat exchanger and "U" Pipe heat exchanger.Fixed tueb heat exchanger adopt the different diameter fast loading interface.Effectively avoid Liquid stop at the cinnecting of heat exchange and pipeline,it can achieve the Whole emptying preset.And the "U" Pipe heat exchanger use the U type heat exchanger tube.produce the liquid from the rock bottom of the bottom box.Avoid

技術參數

Qualification

設備應用

潔凈蒸汽冷凝及冷卻、高潔凈液體的溫度控制藥液的冷卻/加熱注射取水點冷卻 注射用水的冷去/加熱

Application

Vapor condensation cooling,tempera-ture controlin hign clean liquid.Cooling/heating of liquid medicine.Cooling of injection water points.Liquid water cooling/heating.
